Monitoring and Thermal calculations

Thermocouples
We placed thermocouples in the edge of the basement slab, 1m and 3m below the edge, 1m below the centre, and 1m outside the bottom of the basement walls and 0.5m down, 1m below g/l and 2m out and 2m below g/l and 2m out. More will be placed as we go, suggestions welcome.


Calculations for heating losses
Hot 2000 - Thanks to Paul in Montreal


Heating
Annual Loads using TAS - Thanks to Mike George (click icons at bottom to view various graphs)


Temperature / heat loss profile

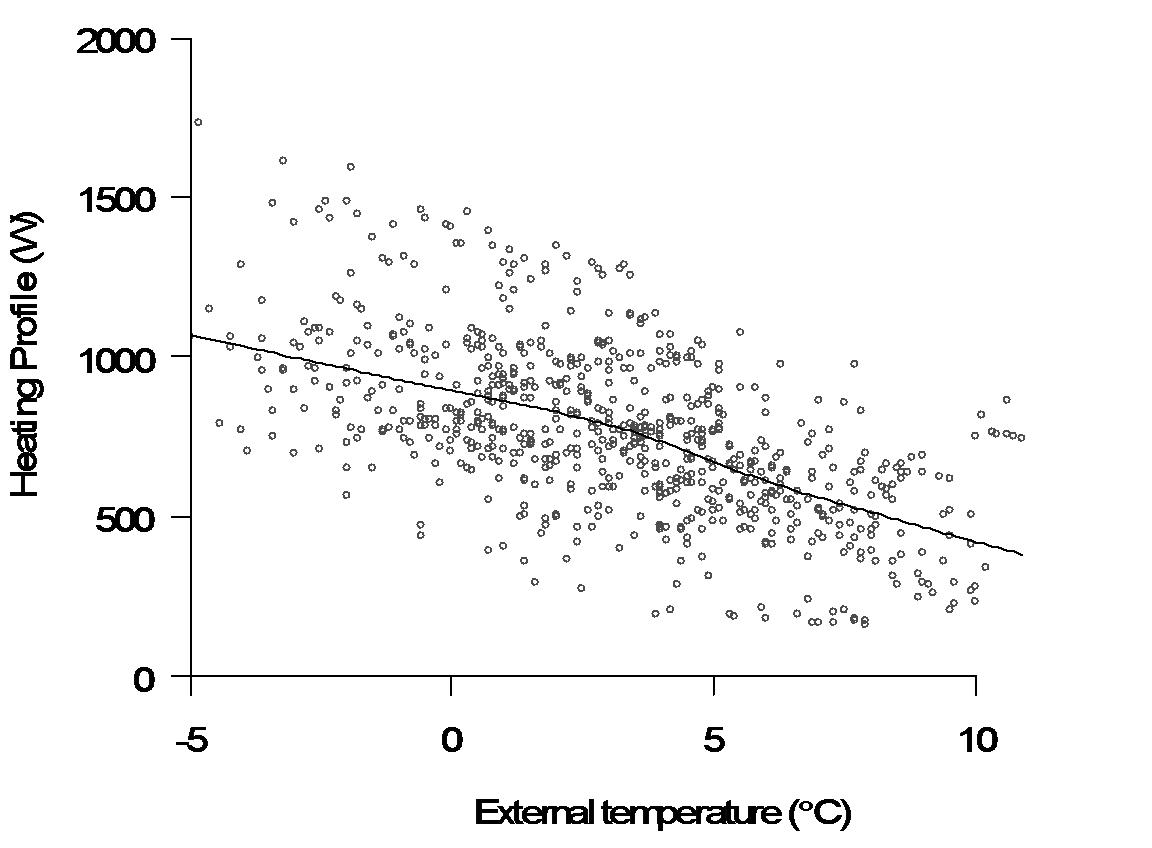

Plot of average heating demand versus outside temperature - Thanks to Ben Cowling, data from Mike George

Temperature / heat loss profile
Plot of average heating demand versus outside temperature - Thanks to Ben Cowling, data from Mike George

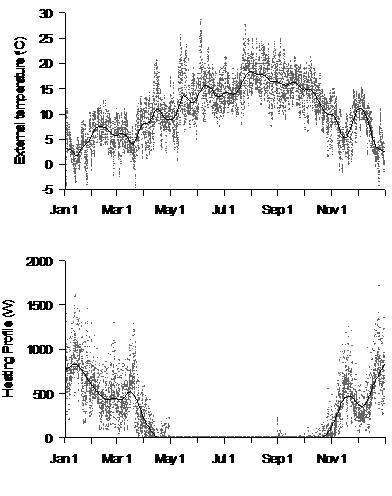

Temperature / heat loss annual profile
Plot of average heating demand versus outside temperature - Thanks to Ben Cowling, data from Mike George

Ground temperature and its effect on heating loads
Annual Loads with various temperatures under basement floor using TAS - Thanks to Mike George


Heating
Annual Loads with various temperatures under basement floor using TAS - Thanks to Mike George


Temperature log

Temperature log


Initial Monitoring Results

Click here for the initial monitoring results
